Home » Products » Laminated Door » Flush Door

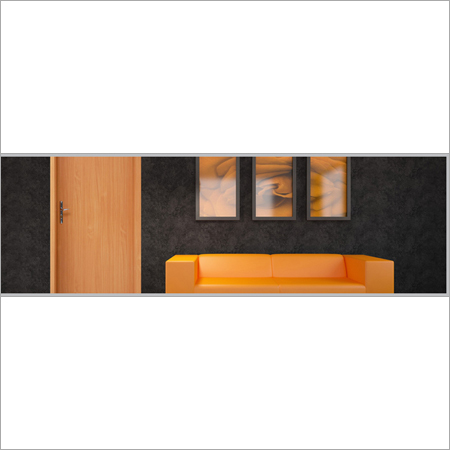

Flush Door

Flush Door
Flush Door
Product Code : FD 03
Brand Name : HARYANA INDUSTRY
Product Description

With the support of our competent and dexterous teammates, we manufacture and export a quality approved stock of Flush Door. Our doors are recognized across the globe for their unique patterns, alluring designs, perfect finish and high durability. In addition to this, the exclusive series of Flush Door is nicely polished to make it resistive against termites. Clients can have the entire range of doors from us in different shades and finishes.

Features:

  • Water resistance
  • Weather and termite proof
  • Maintenance free
  •                             TECHNICAL SPECIFICATIONS (IS:2202)



              TEST

         ISI REQUIREMENT

      OBSERVED VALUE

    1

    Dimension

    Length, Width- +5mm

    Thickness  -  + 1mm

    Within limits

    2

    Squareness



    Deviation not more than 1mm on a length of 500mm

    Deviation below

    1mm

    3

    General Flatness

    Twist, cupping, warping

    Not  to exceed 6mm

    4

    Local Planeness

    Depth of deviation at any point to be less than 0.5mm





    Within limits

    5

    Impact Indention Test

    Depth of Indentation not to

    Exceed 0.2 mm

    Within limits

    6

    Edge Loading  Test

    Deflection of edge with max.

    To be less than 5 mm

    Within limits

    7

    Stock Resistance Test

     No visible defect after test

    No visible defects

    8

    Buckling Test

    Initial deflection- < 50mm

    Residual deflection -< 5mm

    Within limits

    9

    Slamming Test

    No visible damage after Test

    No visible damage

    10

    Misuse Test

    No deformation after  Test

    No deformation

    11

    Varying Humidity Test

    No visible warping, twisting

    Or de-lamination

    No  such defects

    observed

    12

    End Immersion Test

    No de-lemination

    No de-lemination

    13

    Knife Test

    Minimum Pass Standard

    Excellent

    14

    Glue Adhesion Test

    No de-lamination

    No de-lamination

    15

    Screw Withdraw Test

    Load  to withdraw screw

    To be more than  1000 N

    Load ->1000 N
